Mini Excavator Compactor Plate: Achieve Perfect Soil Density on Small Sites
Every expert at AmericanExcavator.org knows that the foundation of any great structure goes beyond the architectural design and lies in the ground itself. So, when it comes to residential lots, utility trenches that are very narrow, or backyard landscaping that requires a detailed touch, using a large ride-on roller isn’t just a problem—it’s virtually impossible due to space limitations which can be solved by Mini Excavator Compactor Plate attachments.
But this also raises the problem of soil stability, and no one wants to have a construction site that would experience a failure in the very structure that is supported by the soil. The mini excavator compactor plate is a perfect tool for contractors, builders, and DIY enthusiasts because it combines the exactness and flexibility of a compact excavator with the power of a heavy-duty compactor, enabling you to get perfect soil density even in areas where your regular equipment cannot reach.
Actually, delivering rapid, high-impact forces to the soil, these plates cause soil particles to be pushed closer together and the air pockets that cause settling later on to be eliminated. So if you’re filling a plumbing trench, laying down a driveway, or reinforcing a steep embankment, you cannot mess up your work by neglecting to control soil compaction.
- It is the most cost-effective solution to intensify the usage of your mini excavator without having to buy a separate compactor for very limited use.
- You can safely access very confined spaces, deep and narrow trenches, and steep slopes with no problem by operating from the surface.
- Greatly diminishes the chance of post-construction soil settlement, which is the main cause of damage to your hardscaping and concrete works.
Important Concepts of a Mini Excavator Compactor Plate
Technical understanding of the machinery is very important for anyone who wants to be the best in using a mini excavator compactor plate. If manually operated equipment like foot-operated jumpers or small walk-behind plate compactors are usually used, machines mounted on excavators operate through the powerful hydraulic system of the carrier machine.
High-pressure hydraulic fluid is taken from the excavator’s auxiliary lines to the compactor’s internal hydraulic motor. The motor spins an eccentric, unbalanced weight at extremely high speeds, thereby creating forceful, rapid vibrations. These powerful vibrations get transmitted through the heavy steel base plate to the earth. The downward push of the excavator combined with the rapid vibrations from the spinning weights results in a compaction wave that penetrates deep into the ground.
- Hydraulic motor actuated eccentric weights at very high speeds produce the exact high-frequency vibrations necessary for soil particles to be moved deep within the ground.
- Heavy-duty rubber shock mounts play an indispensable role in preventing the vibrational energy from destroying the excavator’s components and operator fatigue.
- Highly-resistant steel base plates are capable of withstanding the abusive nature of repeatedly compacting stone and aggregate.
Why Compaction work is Essential Even on Small Job Sites
There is so much confusion about compaction and the need for soil density because even regulators treat it simply as a requirement for checking on. However, to make it a core of the construction work with long-term results, soil compaction needs to be on top of the list mainly because margins of errors are notoriously thin on small sites.
When soil is excavated, it expands, trapping air and losing its structure. If the embankment or foundation backfill comprised of this airy “fluffed” soil is not compacted adequately, it will sink and settle with time, under the influence of gravity and rain. And on that typical residential site, this settlement can be seen quite quickly through concrete driveways with cracks, sunken patios, bowed retaining walls, and of course, underground utility pipes that, under strain of unevenness, may eventually burst.
A mini excavator compactor plate is ideal in such a scenario because it can restore the soil to its natural or even enhanced density that can bear loads. Besides, with the majority of small sites having fragile utility webs, careful confined backfilling is a must. With the mini excavator compactor plate, the operator can compact the soil layer-by-layer without entering the unshored and potentially dangerous trench.
- Prevents astronomical costs that may result post-construction due to settling which will invariably lead to cracking of structural foundations, sunken driveways, and fractured utility lines.
- Greatly enhances the overall load-bearing capacity of the soil, giving it the ability to safely support heavy structures and vehicular traffic.
- Substantially increases worksite safety by allowing the equipment operator to compact deep, narrow trenches from above, without the need of physically being inside them.
How to Identify the Perfect Compactor Plate for Your Mini Excavator
Picking up the gift that fits you the most, i.e., the very mini excavator compactor plate that suits your mini excavator size, is quite a daunting task. However, this choice is very crucial as it will help you achieve soil density goals and at the same time will protect your investment from damage.
Understanding the auxiliary hydraulic flow and pressure requirements of a compactor and ensuring they perfectly suit the mini excavator’s hydraulic output capabilities is the most important factor during the purchasing process. The compactor simply won’t operate at the optimal vibration frequency if the excavator does not provide enough hydraulic flow. At the same time, forcing too much hydraulic flow into a smaller compactor plate could cause a sudden blow to the internal fluid motor seals, spikes in temperatures, and damage the motor.
Besides this, you are also supposed to consider the operating weight of the excavator and the width of the trenches you often work in. An enormous, heavy compactor plate used with a small 1.5-ton excavator is going to be a pretty awkward load for the machine to lift up safely at the full boom reach and may lead to tipping and roll-over accidents. Therefore, it is a great move to refer to the detailed specification guides at AmericanExcavator.org and match the base plate width to your most common trenching buckets in order to ensure maximum efficiency and safety.

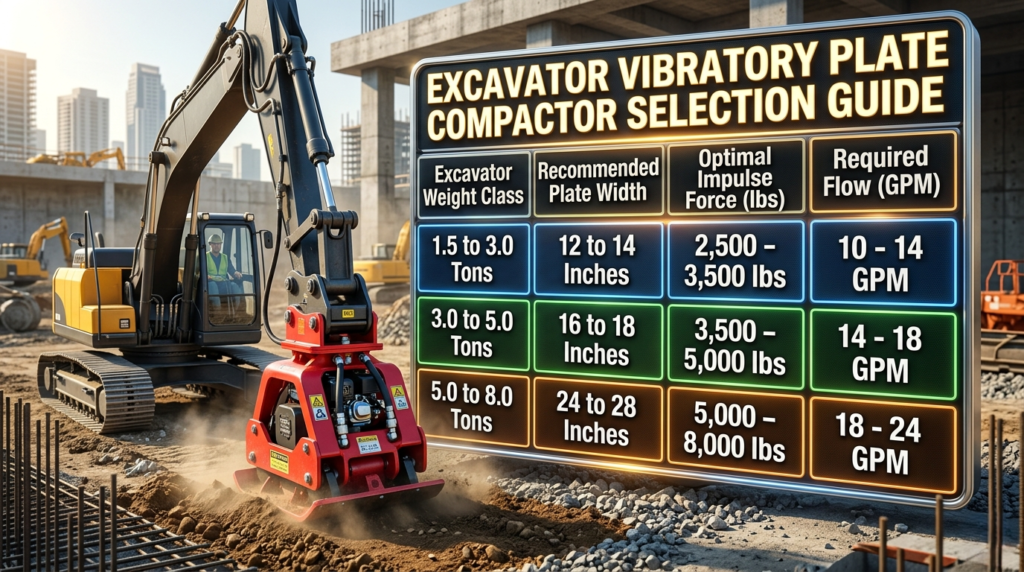

Table: Mini Excavator Compactor Plate
| Excavator Weight Class | Recommended Plate Width | Optimal Impulse Force (lbs) | Required Flow (GPM) |
| 1.5 to 3.0 Tons | 12 to 14 Inches | 2,500 – 3,500 lbs | 10 – 14 GPM |
| 3.0 to 5.0 Tons | 16 to 18 Inches | 3,500 – 5,000 lbs | 14 – 18 GPM |
| 5.0 to 8.0 Tons | 24 to 28 Inches | 5,000 – 8,000 lbs | 18 – 24 GPM |
- Verify your mini excavator’s auxiliary hydraulic flow (GPM) strictly matches with the requirement of the compactor plate manufacturer.
- Choose a base plate width which can be easily and comfortably accommodated in the standard trenching dimensions to totally avoid the chances of the attachment getting wedged between dirt walls.
- Ensure that the combined total weight of the metal attachment is not more than the rated lifting capacity of your specific excavator model at full boom extension for safe operating.
Don’t Miss This! Top Operational Techniques for a Mini Excavator Compactor Plate
Getting a hold of the best mini excavator compactor plate on the market does not necessarily imply that one has also acquired the knowledge of how to use it properly for enhancement of soil density. The first rule of perfect soil density is to work in smaller “lifts” or horizontal layers that are easier to manage.
You should never think of compacting three feet of loose dirt all at the same time. After all, it is not even physically possible. So it is best to place the soil in uniform 6- to 12-inch layers and compact each layer thoroughly and methodically before adding the next round.
- Compact backfills at your site in shallow lifts of 6 inches minimum and 12 inches maximum thickness to ensure complete penetration of vibratory energy in each depth layer.
- Monitor and carefully control your working soil moisture using a water truck or garden hose at the right moments to reach the optimum moisture content needed for perfect particle interlocking with maximum compaction.
- Always overlap each compaction pass by at least twenty percent, thereby leaving behind a beautifully consistent, densely packed surface that is devoid of any soft spots.
Minimal Maintenance for Your Mini Excavator Compactor Plate
Endless years of reliable, uninterrupted service, and unyielding vibratory power at the construction site are the utmost benefits that will be provided to you by the mini excavator compactor plate if you follow a rigorous and determined maintenance plan.
Being that these attachments very often find themselves in extreme, high-vibration, highly abrasive dirt environments, internal parts can possibly loosen, and rubber seals get degraded much faster than they would on standard digging buckets. The single most important maintenance task is scheduled greasing of all internal eccentric bearings.
- Regularly pump in premium, high-temperature lithium grease through the eccentric bearing grease zerks to absolutely prevent internal heat failure and friction damage.
- Do a visual inspection of the thick rubber vibration isolators on a daily basis. Replace any severely cracked or torn ones immediately.
- Examine all black hydraulic hoses, protective nylon sleeves, and flat-faced quick couplers for any signs of physical rubbing, ground wear, or fluid leakage.
Safety Protocols When Operating Compaction Equipment
Small, tight residential sites are very dangerous when it comes to masses of heavy machinery and a number of accidents worth millions have been witnessed. So working with mini excavator compactor plates for such scenarios must be done with maximum safety in mind at all times.
The high down force coming together violently with rapid vibrations can destabilize the adjacent trench walls if they are not shored well with trench boxes and may cause a collapse leading up to a fatality.
- As much as possible maintain a safe, calculated distance of your mini excavator heavy rubber tracks from the crumbling edge of the excavation, especially when working with sandy, wet, or very loose soil conditions.
- Have your entire construction site professionally and legally marked by utility locators before starting any excavator work to prevent accidental damage to buried utilities like PVC water lines, fiber optic cables, and natural gas mains.
- Wear OSHA-approved hearing protection gear at all times and use a machine cab that is sealed and enclosed to protect the operator from excessive engine noise and resulting acoustic fatigue.
FAQs About Mini Excavator Compactor Plates
What is a mini excavator compactor plate used for?
The mini excavator compactor plate is mainly used as an attachment for rapidly and effectively compressing and mechanically strengthening loose soil, gravel and mixed aggregate in areas where large ride-on compaction rollers just cannot fit. The mini excavator compactor plate securely attaches to the digging boom of a standard mini excavator. Besides, it even utilizes the host machine’s hydraulic fluid power to generate very high-frequency vibrations. Locally compacted soil results in significant improvement in its load bearing capacity and relatively restrains structural settling which generally occurs at tight spots like plumbing utility trenches, retaining wall backfills, and residential driveways.
- Have an auxiliary flow requirement from 10 to 30 GPM to operate their hydraulic motors effectively, depending mostly on their size and weight.
- The minimum limit for good performance is the amount of hydraulic fluid needed to keep the motor running it at its most effective vibration generation range.
- Hydraulic motors inside the compactors have relatively small sealing surfaces whereas the rubber used for these seals exhibits swelling and relaxation behavior causing the seals to wear and eventually fail.
Can I use a mini excavator compactor plate to drive fence posts or sheet piling?
Sure, a mini excavator compactor plate is a very flexible accessory and quite often can be used as a very efficient vibratory driver for thick wooden posts, metal farm fencing and light steel sheet piling. The heavy booms of the excavator are capable of applying very high downward hydraulic pressure combined with the rapid vibratory hammering action which makes the posts slide exceptionally well into the soil without the posts getting splintered or bent. Yet, the use of special, heavily reinforced steel cup attachments or custom driving fixtures is usually highly recommended to keep the post perfectly centered under the flat vibrating plate and to strictly prevent dangerous slipping.
- One of the best selling points of a mini compactor plate is its ability to drive posts without any direct human intervention. Unfortunately, it is a limited use within a niche market and mostly it is only used for driving fence posts.
- The compactors are available in several sizes ranging from 150 kg up to 6 tons and application possibilities are virtually endless when you can apply vibration to something.
- Accompanying equipment will be the same elasticity of connection as the damper and sudden forces need to be managed.
Are compactor plates better than manual jumping jacks (rammers)?
When it comes to compacting deep, long utility trenches and medium to large volume dirt backfilling, an excavator-mounted plate compactor is far superior and more efficient than a manual jumping jack (rammer). However, manual jumping jacks are still very useful for small confined areas or carefully working around fragile PVC pipes. Besides, they also require a lot of physical labor and the manual workers are directly exposed to the dangerous risk of soil collapses. Plate compactors increase the surface area density and maintain the preferred particle sizes without physically handling the soil. Simply put it is to compact soil which is a very important last stage to excavation.
- Provide several times more compaction force than labor intensive manual dirt rammers on a per square inch basis.
- Manual soil rammers are very suitable for localized compaction of a few centimeters or low-rise footings but not for stiff clay backfills with high percentages of fines.
- Technically, till now manual soil rammers have been proven not only to reduce the effective bearing capacity of the ground but also to increase undesirably the friction angle of the soil.
Exactly how deep does an excavator compactor plate compact soil?
The ability to get soil densification through compaction varies mostly depending on the size of the steel plate, the type of earth in which you are working and its moisture content at the time of the operation. The typical range of depth would fall between 12 and 24 inches for each individual pass. Soil with heavy, cohesive properties such as clay, will require considerably thinner lifts of dirt in order to be compacted to the desired level of structural density, on the other hand, loose granular soil types like sand and crushed gravel are capable of being compacted to much greater depths.
- Depending on the type of soil, the compaction depth of the excavator compactor plate can change significantly.
- Wet, heavy clays usually pack into dense compaction layers very quickly but dry, loose sand and gravel require lots of vibration and compaction force to make tight dense layers.
- The standard depth of the soil lift that is being compacted is 6 to 12 inches which ensures that the vibratory energy can reach the lower layers of compacted soil.
Will the extreme vibration severely damage my mini excavator?
When the mini-excavator compactor plate is operated and cared for in accordance with instructions provided by the manufacturer, the vibratory forces should not damage your excavator. These powerful attachments are manufactured with heavy-duty rubber shock mounts and thick isolation bushings so that much of the kinetic energy is absorbed before it reaches the excavator’s boom and pivot points. Nonetheless, if the rubber isolators are not maintained and are allowed to tear or be aggressively used with excessive rigid down-pressure, the vibrations can then be transmitted causing metal fatigue and damage.
- The trade-off to the provision of vibratory force beneath the compactor plate is the introduction of the very damaging vibrational kinetic energy into the carrier machine.
- It is thought that the rubber isolation elements used in the mini excavator compactor plate have significantly contributed to prolonging the viability of the excavator without incurring numerous mechanical defects caused by the vibration.
- If any crew user has a history of damaging top drive supports, these from the association certainly should be replaced and immediately.
How do I properly maintain my mini excavator compactor plate?
The key to keeping your mini excavator compactor plate in optimal working condition lies in the regular performance of structural maintenance tasks such as lubrication, thorough hydraulic hose inspection, and diligent monitoring of the rubber vibration dampeners. Frequent and meticulous greasing with high temperature lithium grease of the high-speed eccentric bearings is highly advised in order to prevent them from seizing due to heat generated from friction. Likewise, thorough visual inspections of the black hydraulic hoses, as well as daily checks of the rubber shock mounts, are two other tasks operators must not overlook.
- Keep internal bearings dust and water proof by lubricating them regularly with specialized, high temperature, anti-wear grease.
- Use torch for basic daily inspection of hydraulic pipelines, couplers, and rubber components for any evident slight leakage.
- Maintain the rubber shock absorber mounts not just for protecting the operator cabin safety but also for prevention of steel boom damage.
